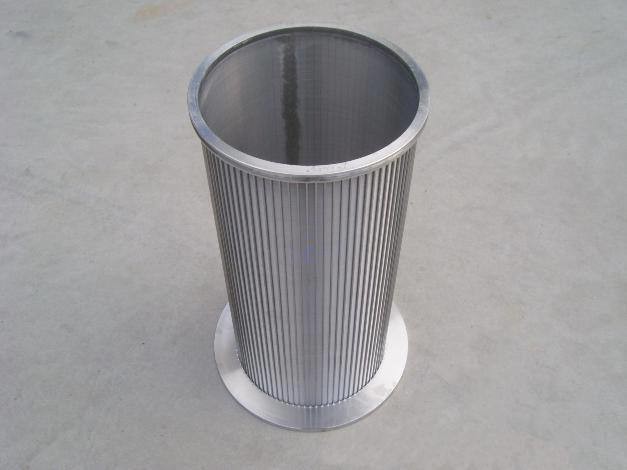

14inch wedge wire screen / water well screenstainless steel wedge wire screen
mesh filter elements are stainless steel wedge wire welded into screen. Filter rating range from 30-800 micron are available. Wedge filter is welded with stainless steel wedge shaped wire and support bar. Major products include filter plate, filter basket and filter elements. Mostly used as water well screen or oil well screen.
Materials: 304, 302, 304L, 316, 316L stainless steel wire, or galvanized steel wire.
Advantage:
High hardness, High strength, High-durability
Larger effective filtration area
Uniform gap
Clog proof design
Specification:
Filtration rate: 25-800μm
OD: 19-914mm, Length: 6 meter(no splice)
The slot: 0.1mm-45mm

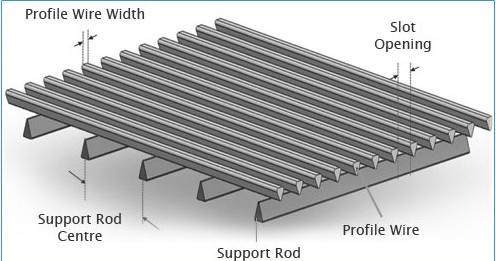

Wire :2.0mm*30.mm,3.0mm*4.6mm,3.0mm*5.0mm
The rods:3.8mm/22, 3.8mm/32, 3.8mm/48, 3.8mm/50.
Height 6-40 mm
The rod can be round wire, triangular wire or trapezoid wire. The warp is triangular wire (V-shaped wire).
Wedge filter is valid in kinds of shapes, such as Square, rectangle, disc, basket, tube, cone.
Styles of connection: by welding or by threaded male/female coupling.
Hanke Filter can be customized by your demands.
Application:
Petrochemical industry: catalytic reaction engineering, hydrogen desulfurization, stupid ethane dehydrogenation, ammonia conversion, ISOM.
Water treatment
Mineral processing
Paper making
Food and drinking industry
